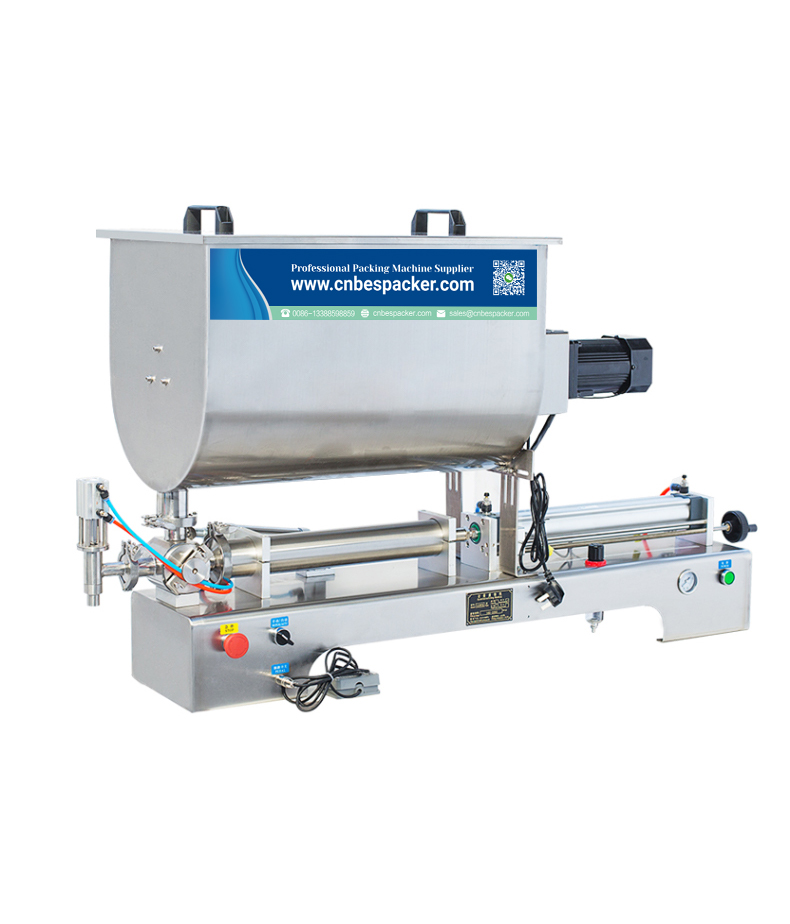

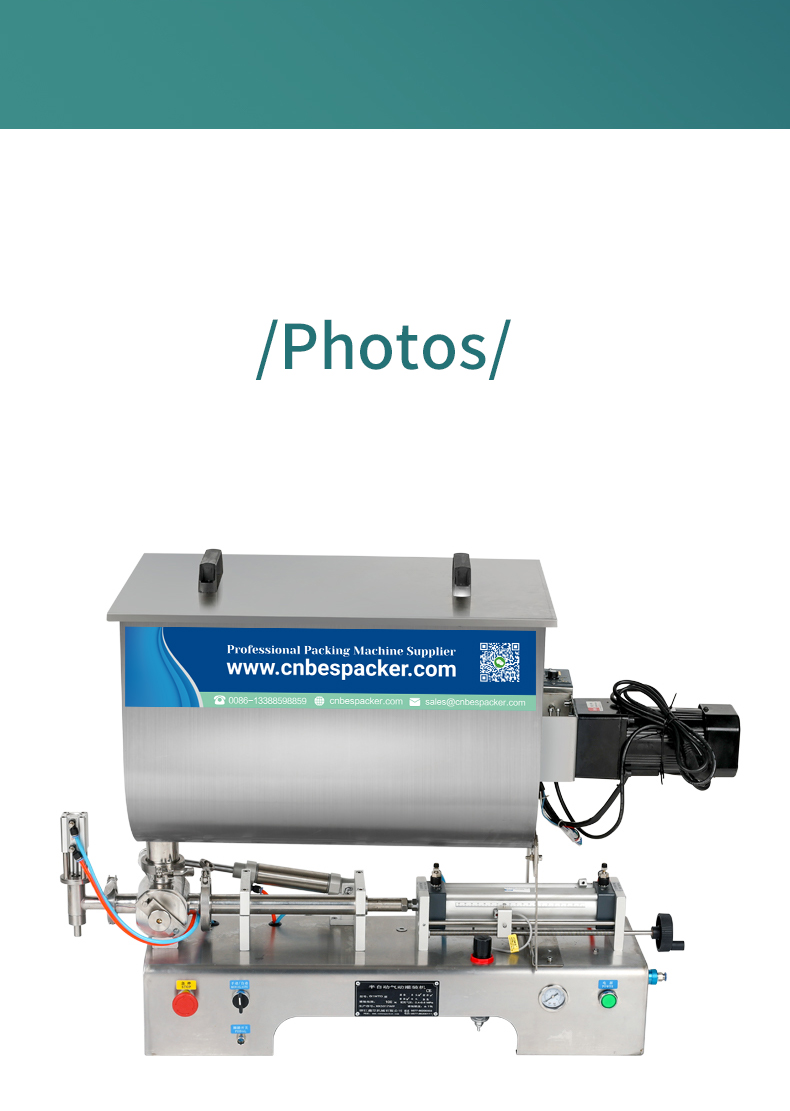

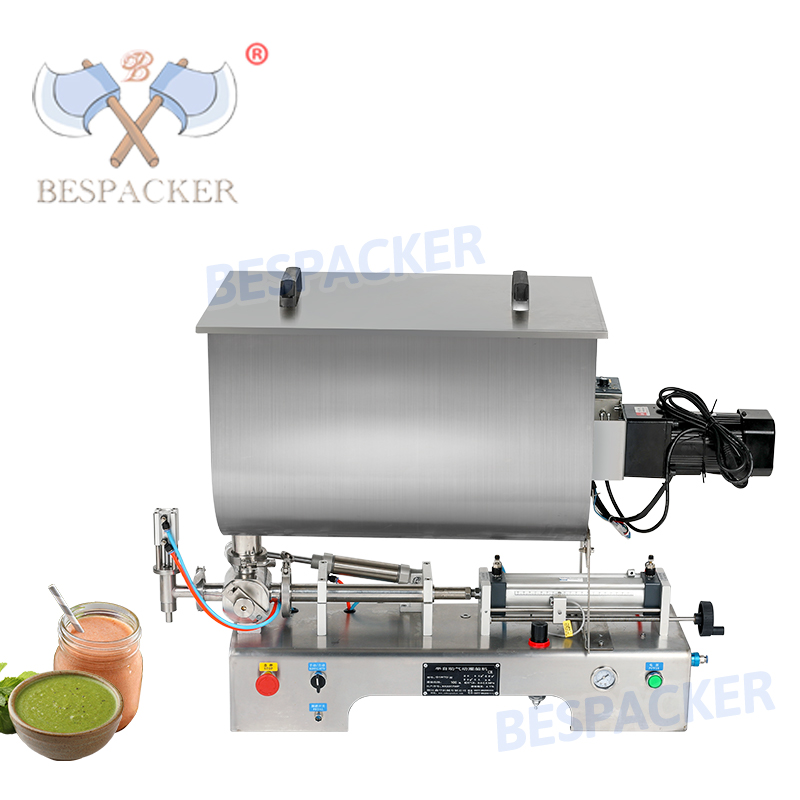

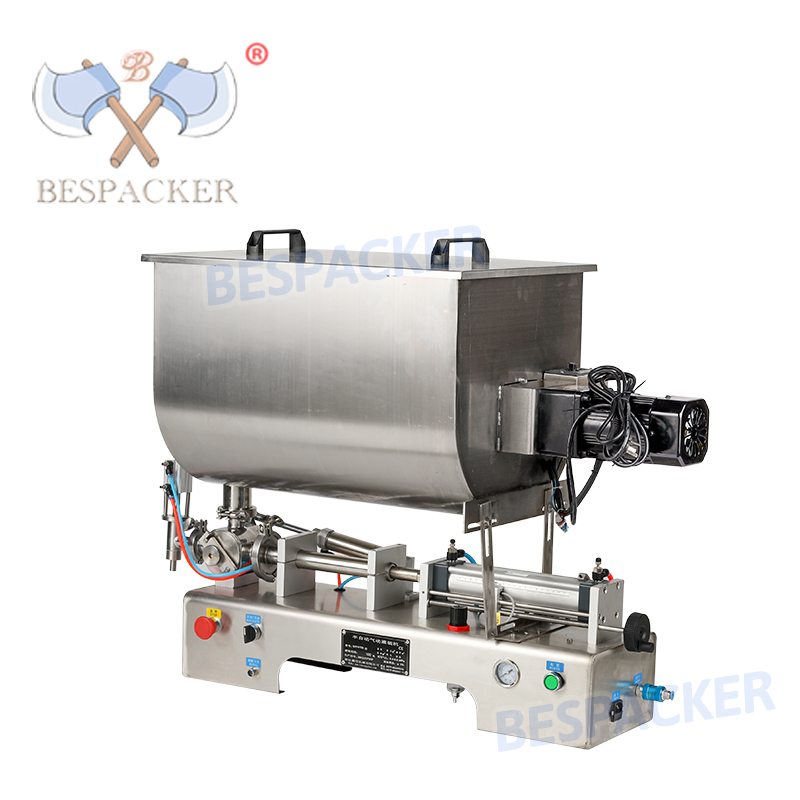

Bespacker G1WTD new type paste cream honey filling machine with mixer

Description of parameters of filling machine:

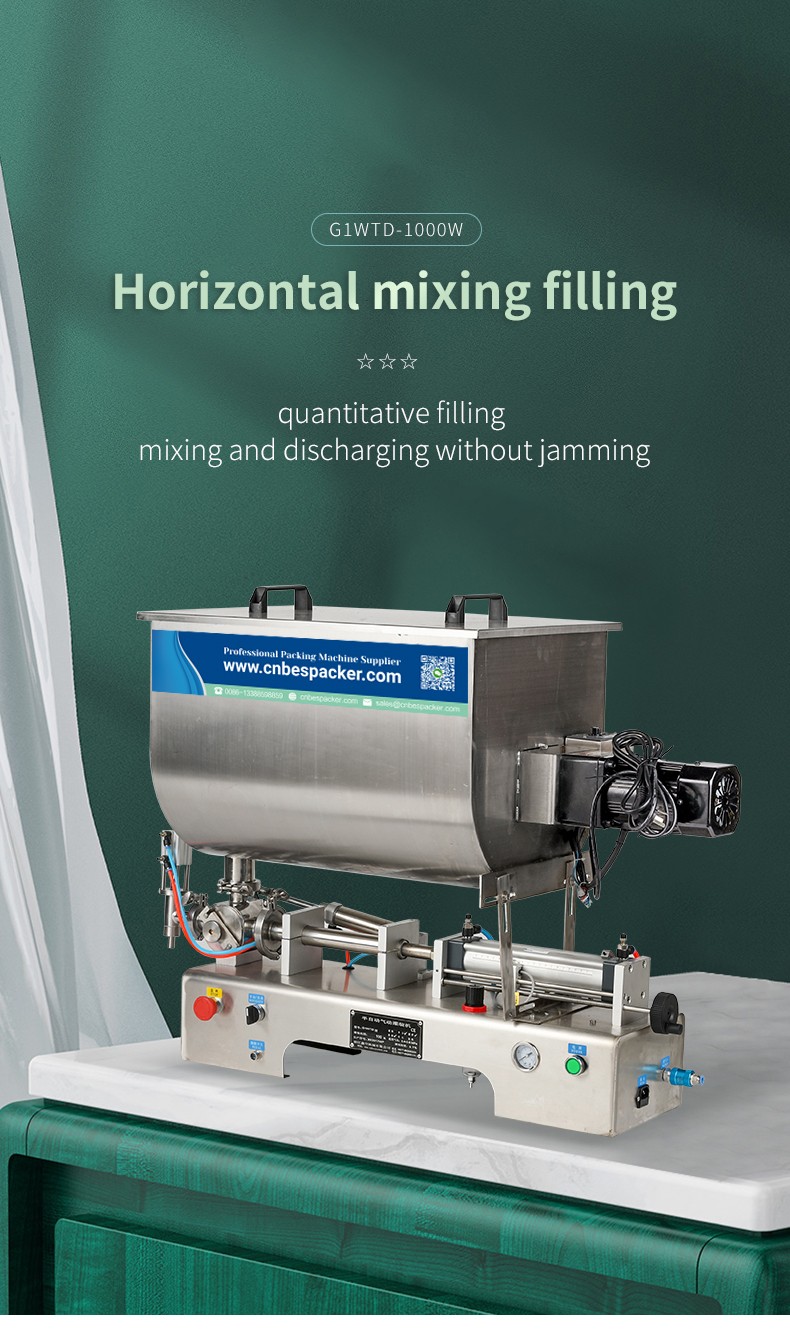

ModelG1WTD-1000W
Voltage110V/220V,50HZ~60HZ

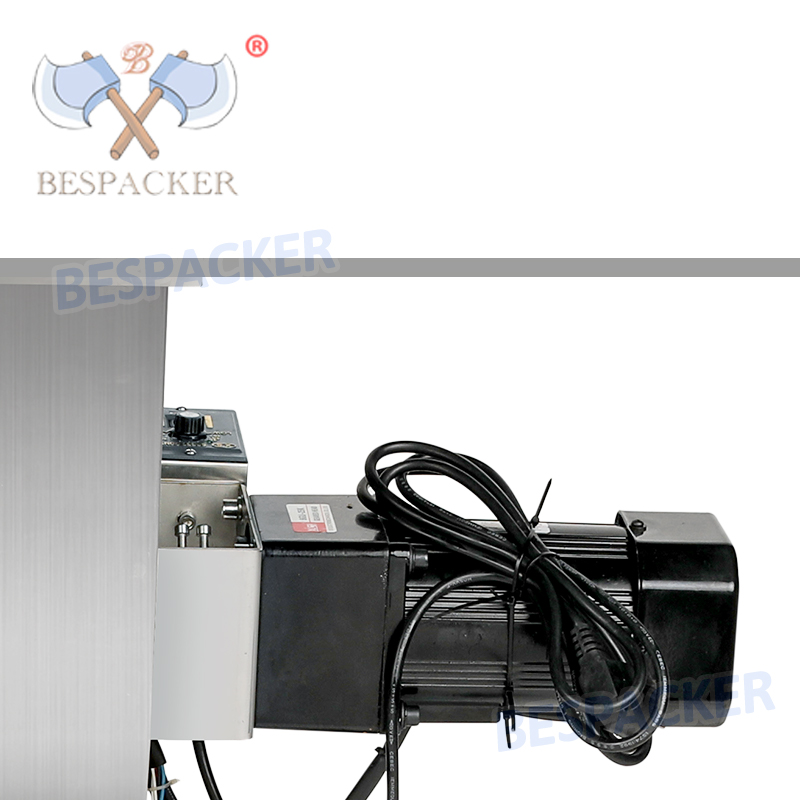

Mix Power250W
Filling Speed5-12pcs/min(For reference only)
Filling Range100-1000ml
Filling AccuracyAbout ±1%(Test by water)

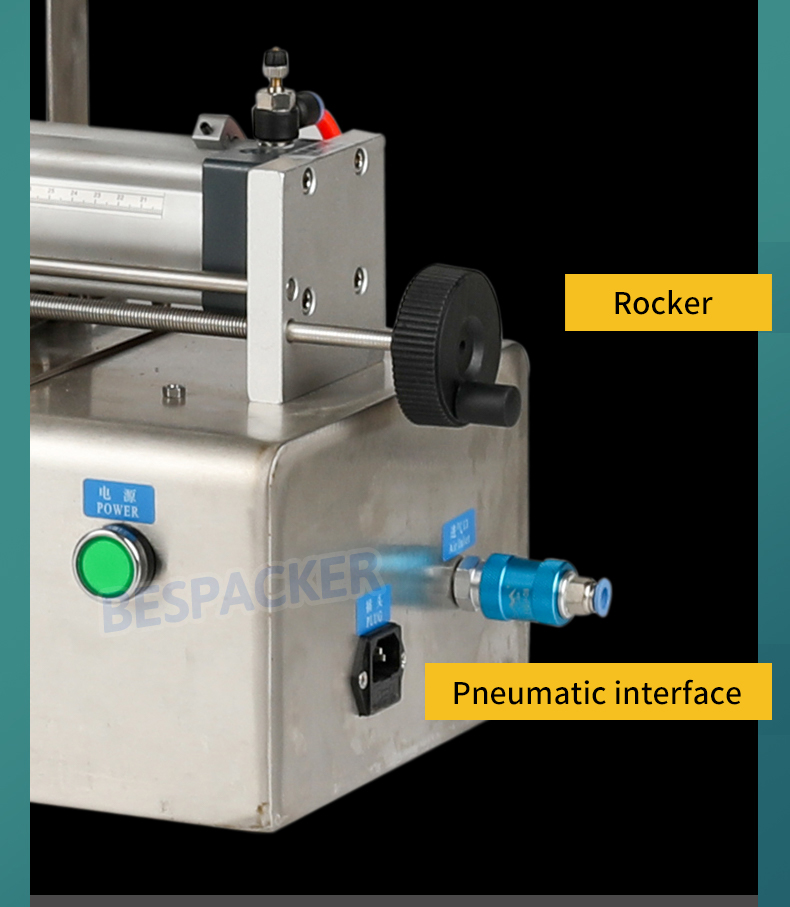

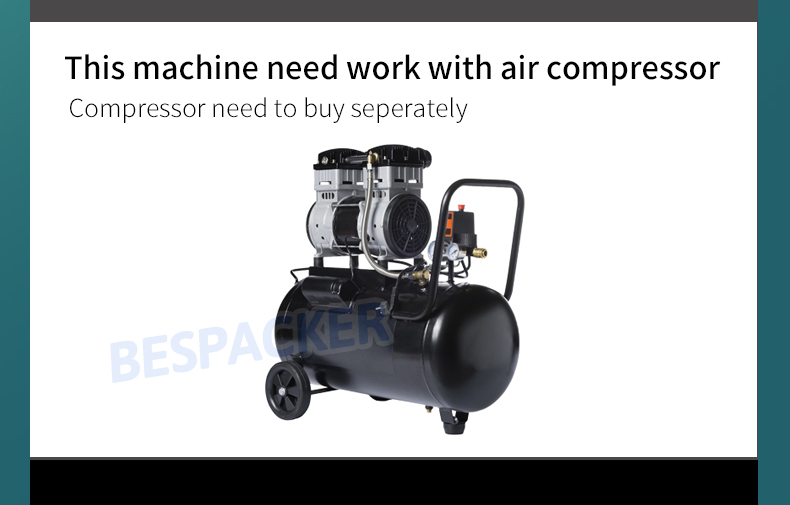

Air compressor0.4-0.6MPA
Dimension110(L)x46(W) x76(H)cm
Weight61KGS

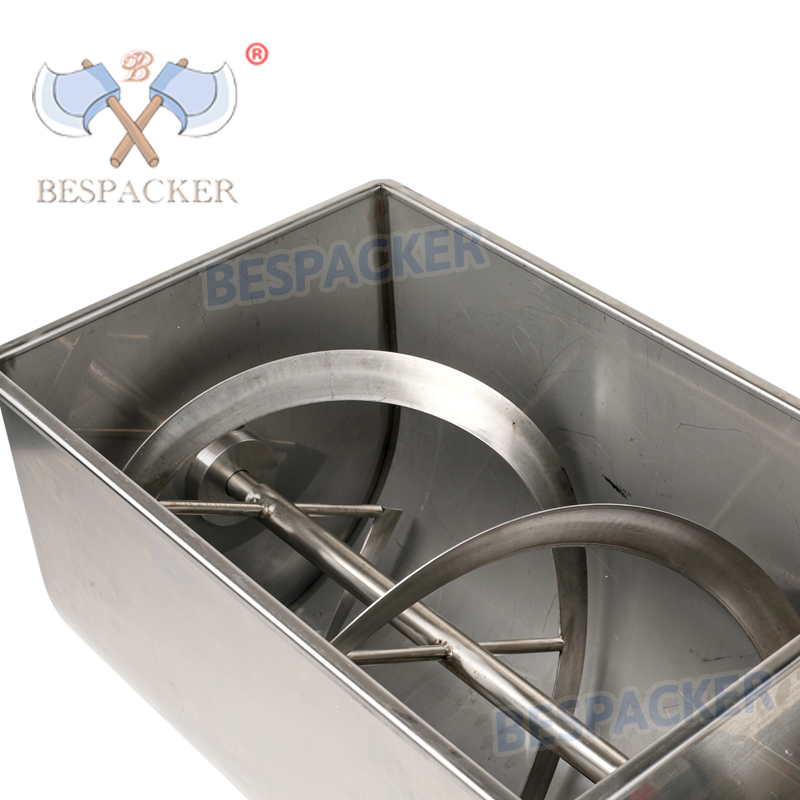

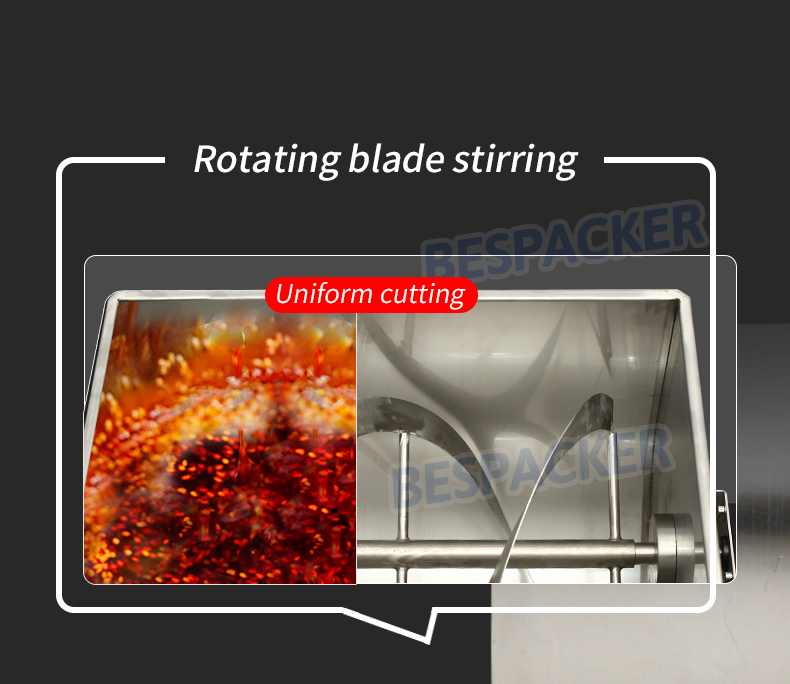

Hopper mixing & Hopper Heating function optional

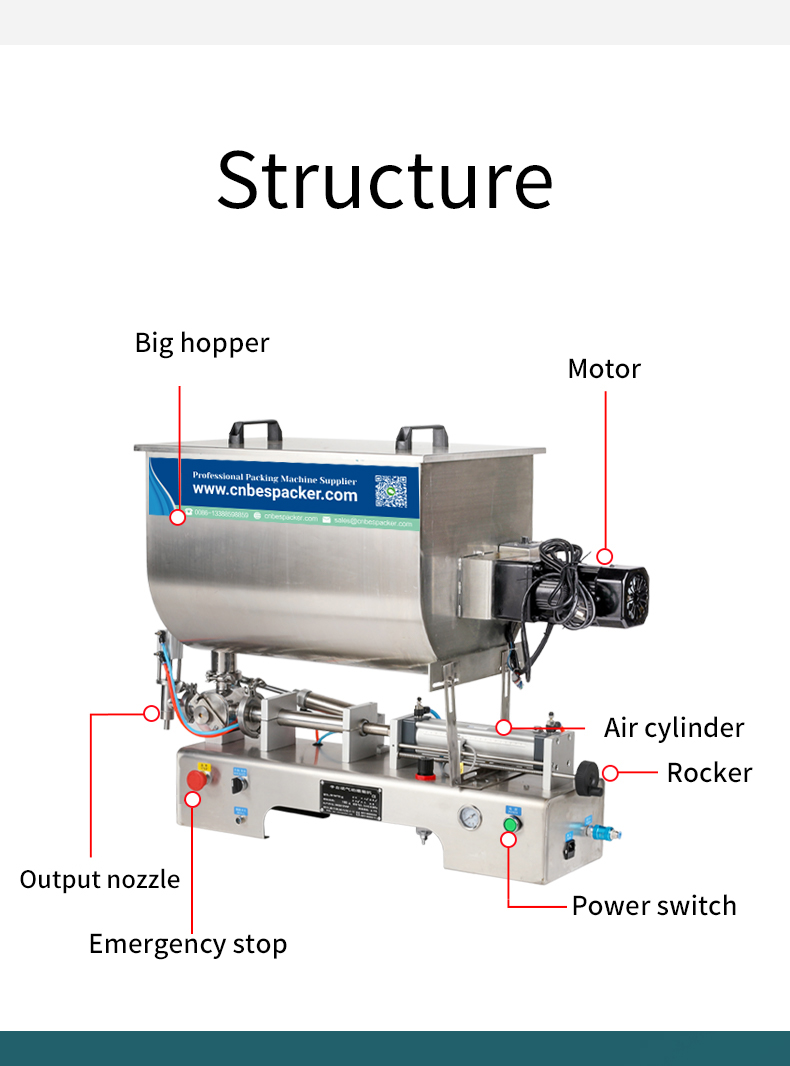

G1WGD-mixer--------Stirring and heating liquid and paste filling machine for cream shampoo, cosmetic, toothpaste.

1, Brief introduction:
1.1)  Paste filling machine is the automatic filling system using compressed  air as power, which is composed of precision pneumatic components. The  paste filling machine has the features of simple structure, reliable and  convenient adjustment.

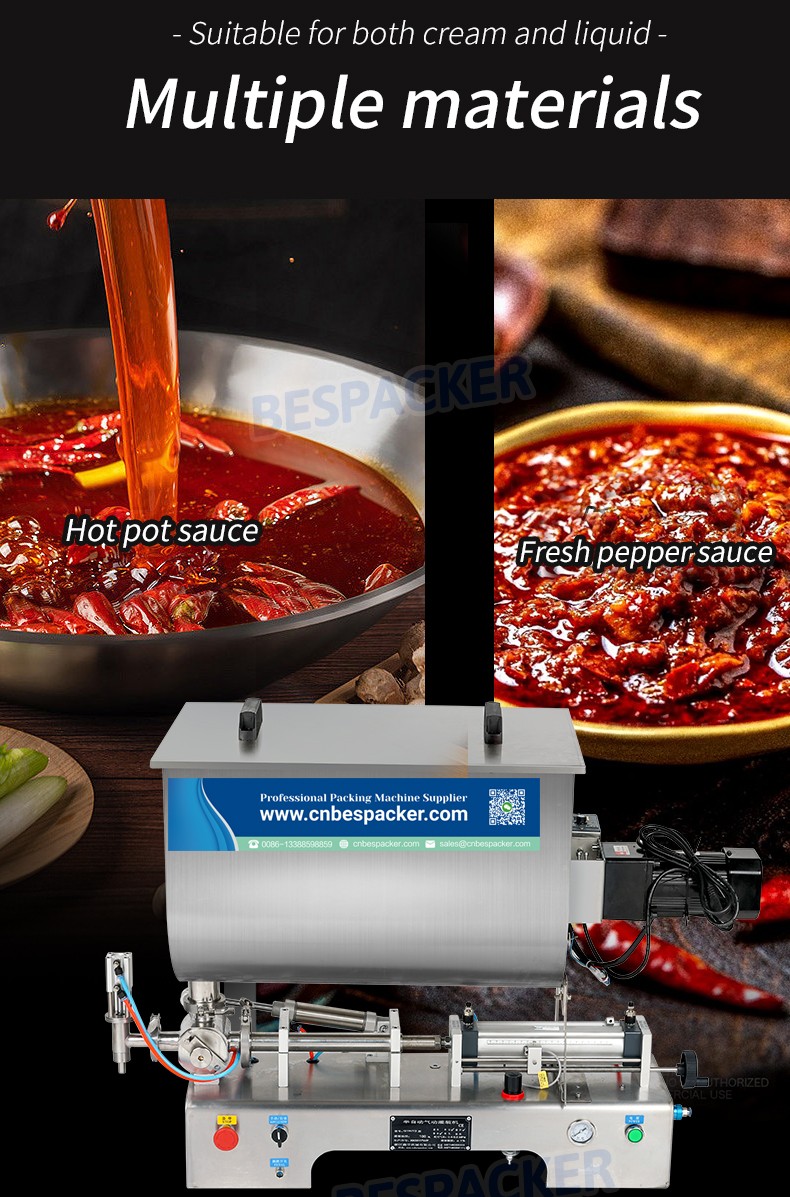

1.2)  This paste filling machine also adapts to all kinds of paste, viscous  paste filling. This paste filling machine can work in the inflammable  and explosive environment. It is the ideal filling equipment of  pharmaceutical, chemical, food, cosmetics and other industries.


2, Technical features of paste filling machine:

2.1)  This paste filling machine is semi-automatic piston paste filling machine.

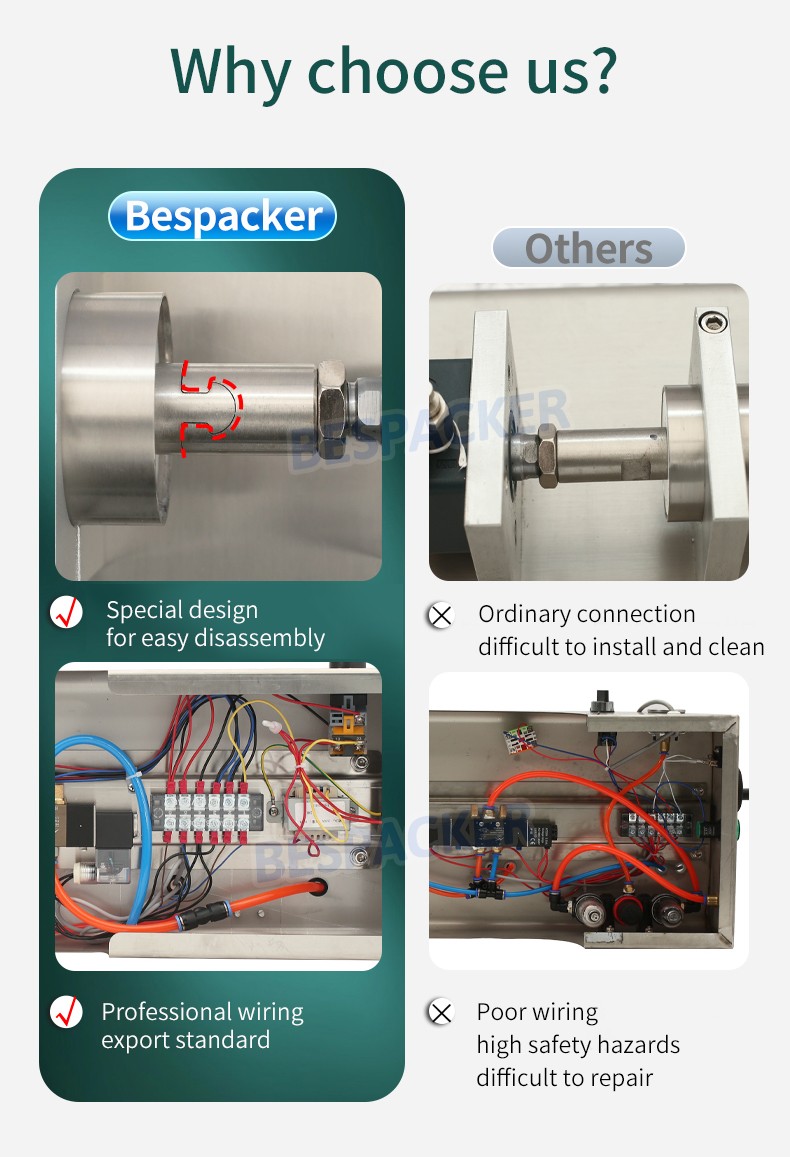

2.2)  This machine has reasonable structure, compact shape, convenient  operation. The pneumatic parts adopts Germany FESTO and Taiwan AIRTAC  starting component.

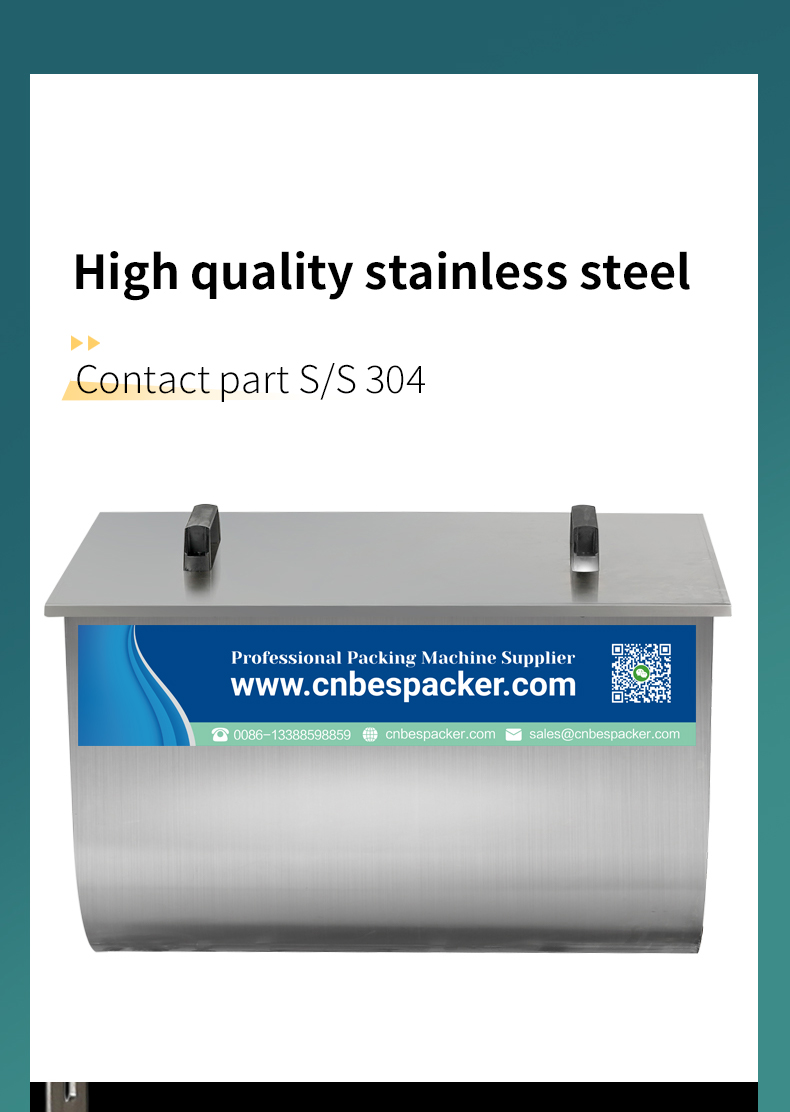

2.3)  The fact that the part in contact with the material is made of 316#  stainless steel, which brings qualified anti-corrosion performance,  meeting with the GMP standard.
2.4) Filling volume and filling speed can be adjusted, and the precision is high.

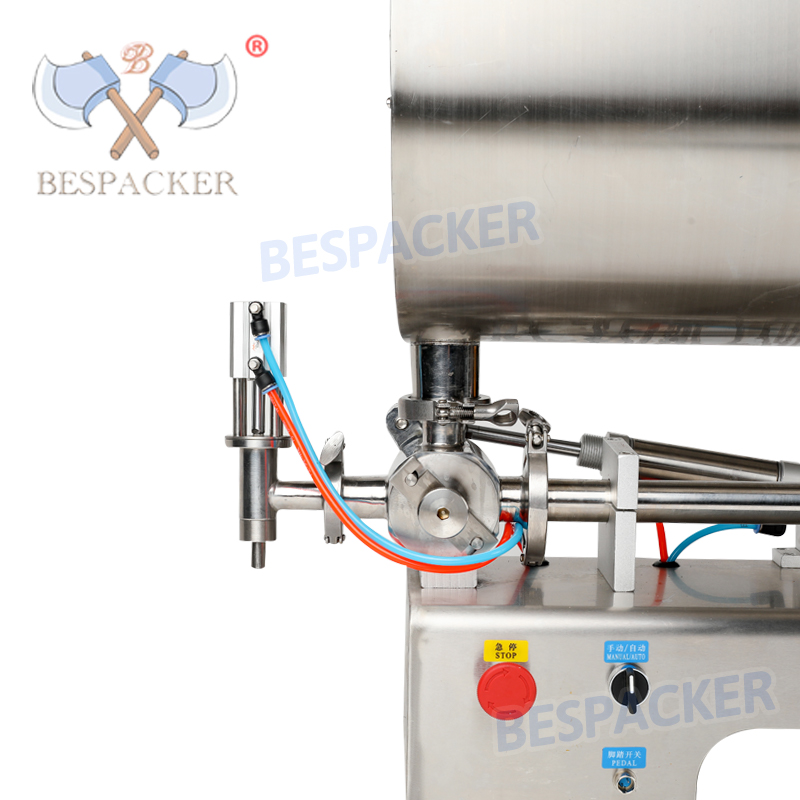

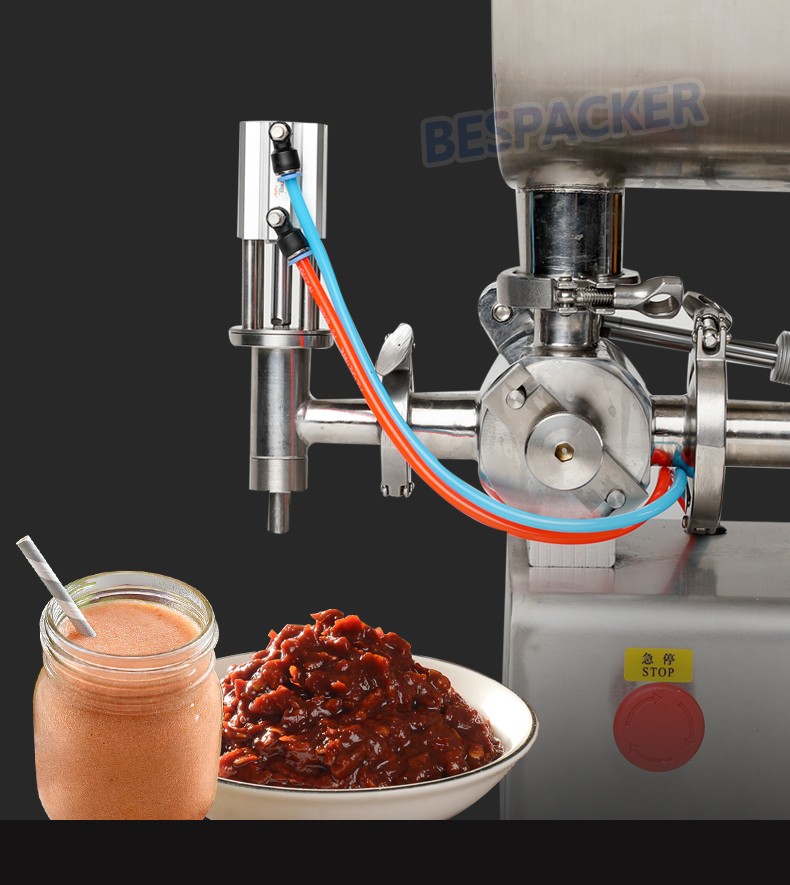

2.5) Filling head adopts anti-leakage and lifting device.
