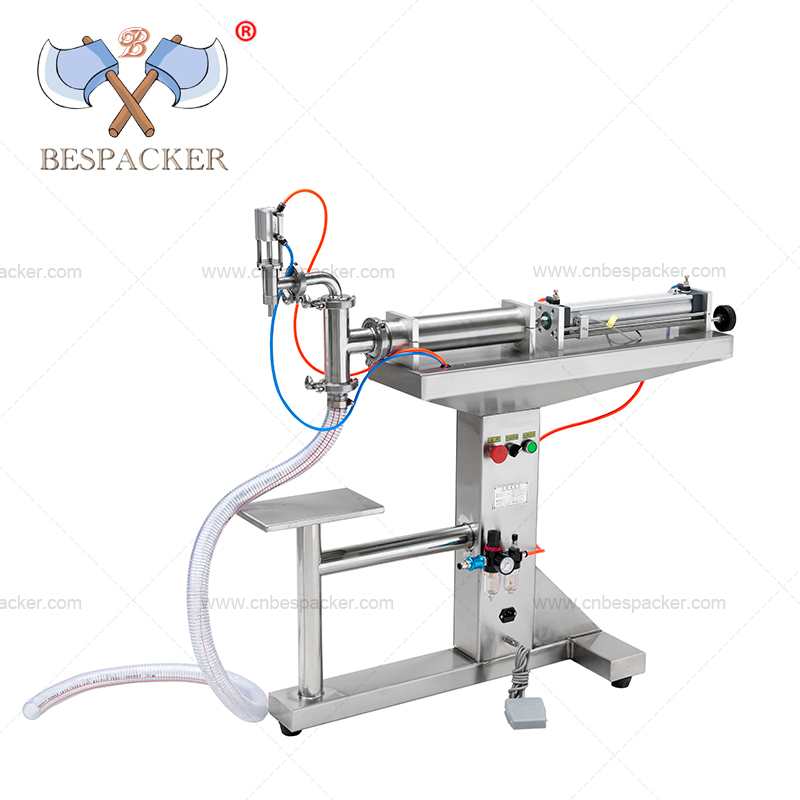

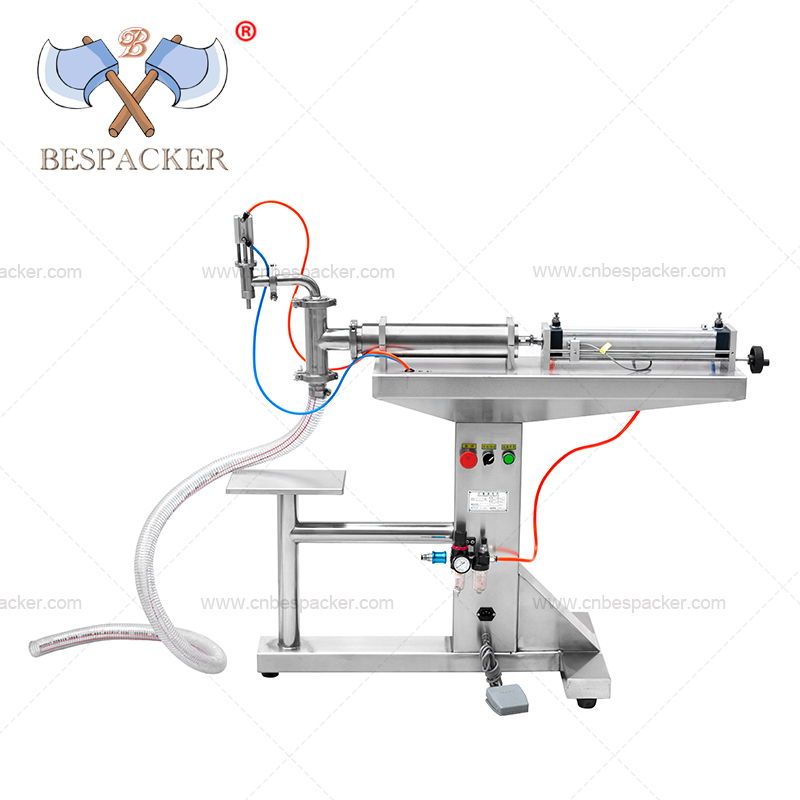

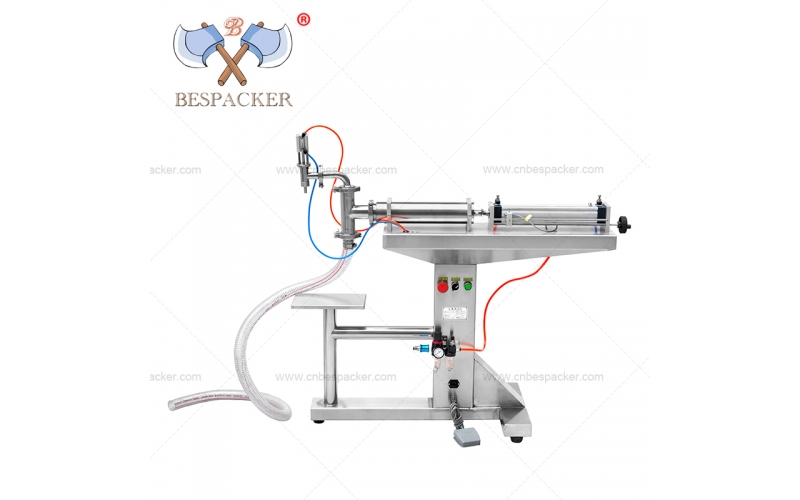

Bespacker Y1WLD Romania floor type piston liquid filling machine

图片关键词

Description of filling machine:

Model

Voltage

Filling volume

Filling speed

Filling accuracy

Dimension

Weight

Type of packages

Y1WLD

110V/220V

5-100ml

1-30bottles/min

≤±1%

90*45*136cm

45kg

Plywood boxes

10-300ml

97*55*146cm

50kg

Plywood boxes

50-500ml

97*55*146cm

50kg

Plywood boxes

100-1000ml

100*55*146cm

56kg

Plywood boxes

500-2500ml

125*55*146cm

60kg

Plywood boxes

1000-5000ml

125*55*146cm

65kg

Plywood boxes





Precise metering control.
Filling machine with fixed flow channel parameters, control the filling time to achieve different measurement of filling.
A. Pneumaticvalve filling precise time can be set to 0.01 seconds, the measurementaccuracy can be controlled in the ± 1% error range, reducing unnecessarymaterial loss, improve user economic benefits.
B.  Thevolume of filling, can adjust the initial filling to the requiredvolum, and then fine-tuning, you can get the ideal filling machinemeasurement accuracy.

Working principle: table type liquid single head filling machine is ahigh viscosity flow filling machine developed by our company, it is toextract and made of high viscosity material to drive the three passprinciple of a piston and rotary valve through the cylinder, and usemagnetic switch to control the cylinder stroke, which can adjust thefilling volume.
