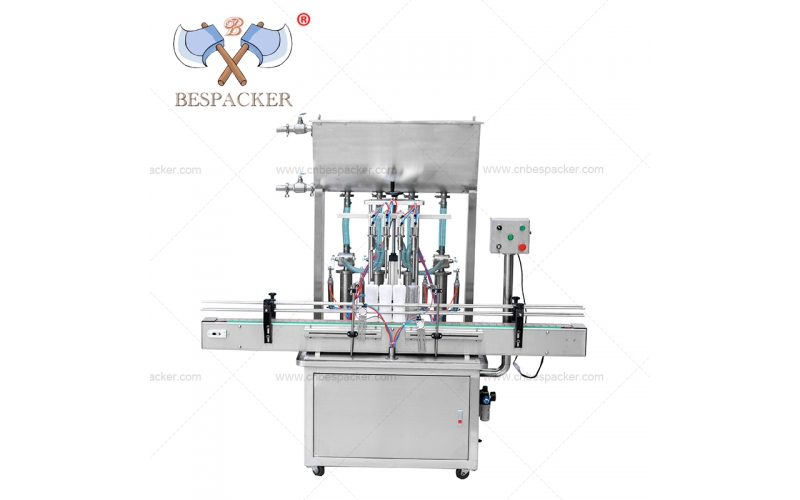

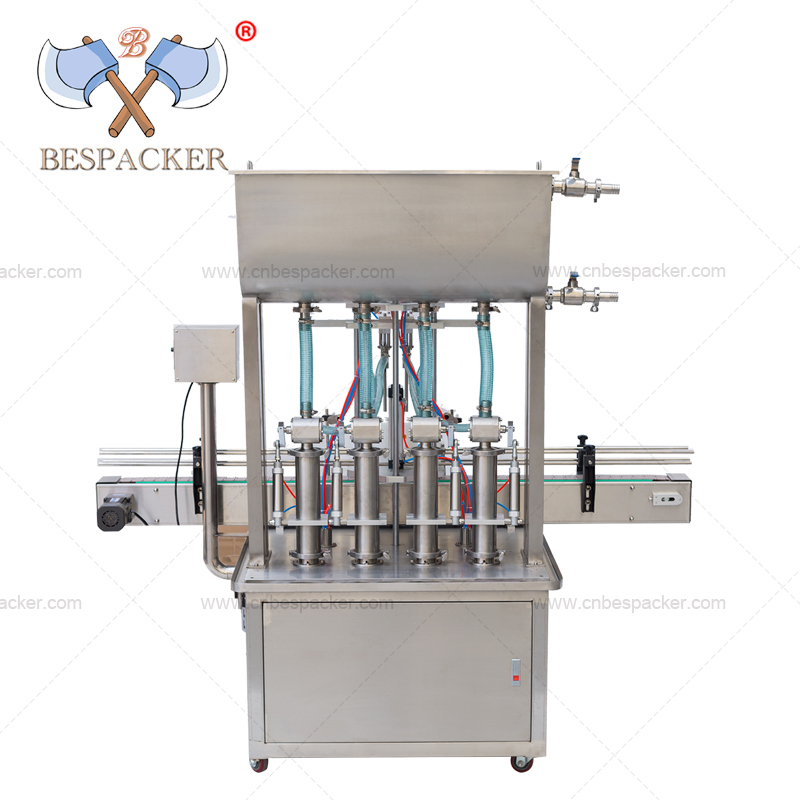

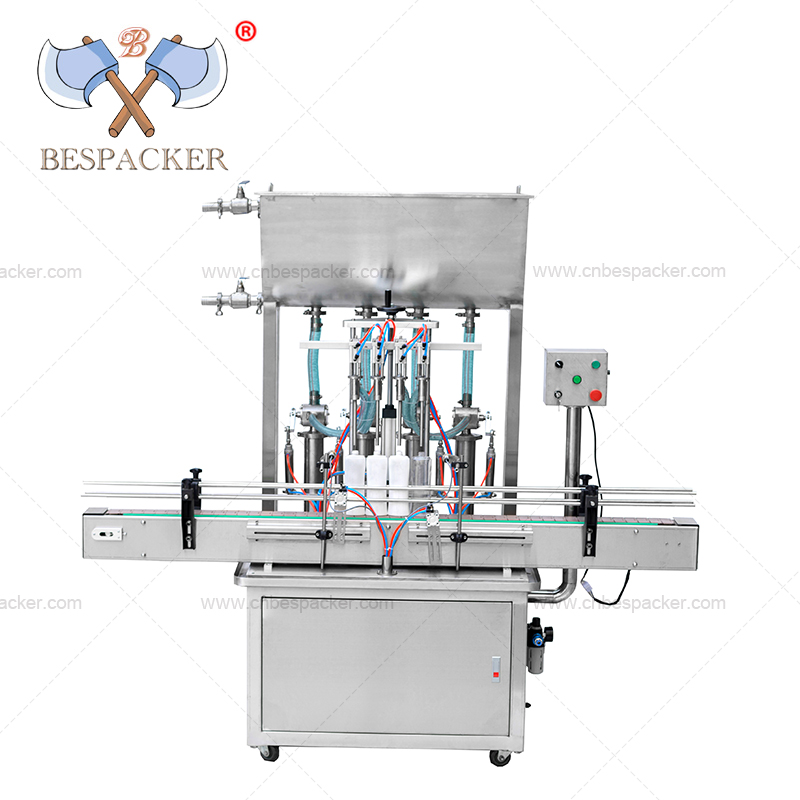

Bespacker GT4T-4G 4 filling heads automatic liquid paste bottle filling machine

Model
GT2T-2G
GT4T-4G
GT6T-6G
GT8T-8G
Voltage
110V/220V, 50HZ/60HZ, 800W
Filling range

5-100ml, 10-300ml, 50-500ml, 100-1000ml, 500-2500ml, 1000-5000ml

Filling speed
10-40bottles/min
20-50bottles/min
30-70bottles/min
40-80bottles/min
Filling precision
≤±1%
Air pressure
0.4-0.6Mpa
Weight
320kg
370kg
450kg
580kg
Dimension (L*W*H)
210*86*146cm
210*110*210cm
320*110*165cm
370*110*165cm




Product description

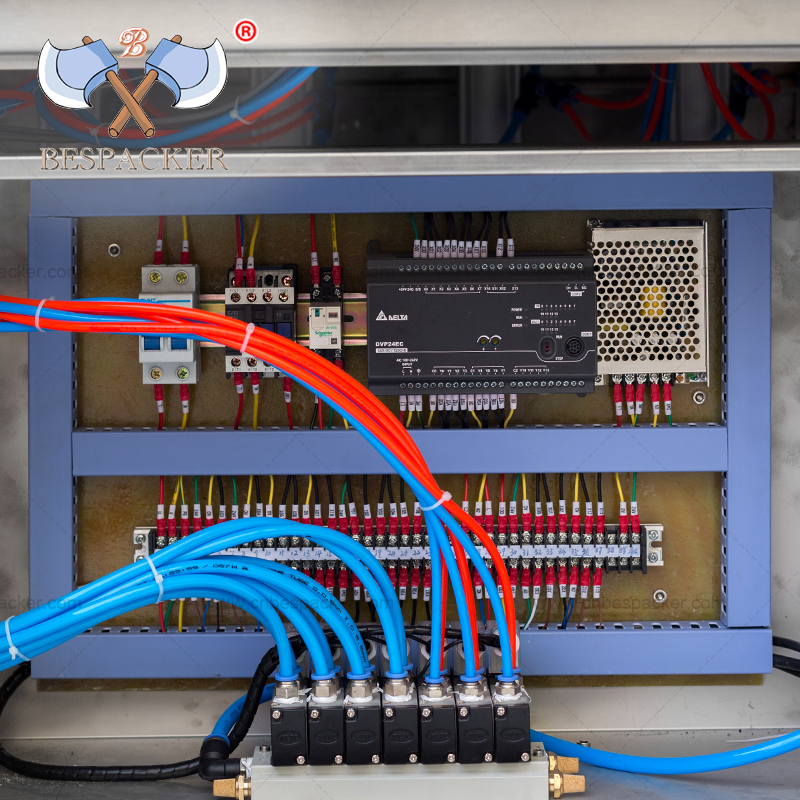

The filling machine is a microcomputer (PLC) programmable control, photoelectric sensor, pneumatic execution in one of the high-tech filling equipment. This filling machine is specially used for filling food, such as liquor, soy sauce, vinegar, condiment, vegetable oil, syrup, mineral water and other pesticide liquid. Filling measurement accuracy, no drip. Can be applied to 50-1000ml various bottle types (including shaped bottles) filling.


Advanced design

⊙The filling machine suit for different specifications of the container filling, can be change filling specifications within a few minutes.
⊙Filling cycle is short, high production capacity.


Unique filling method

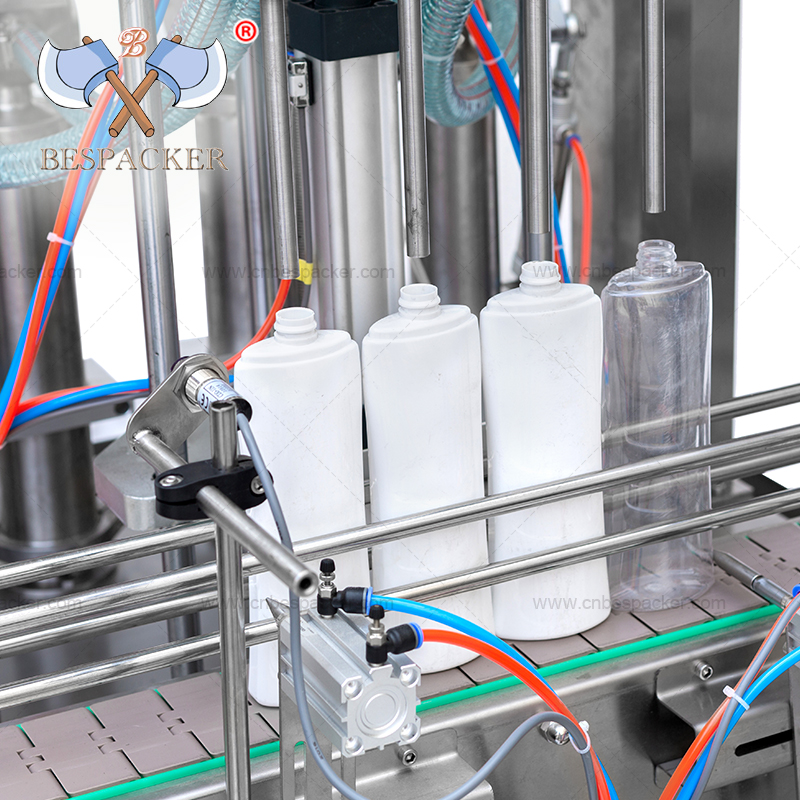

⊙Designed to use linear group in o the bottle, a bottle of the way to expand the filling function, a variety of shapes of containers, can effectively fill in the equipment.

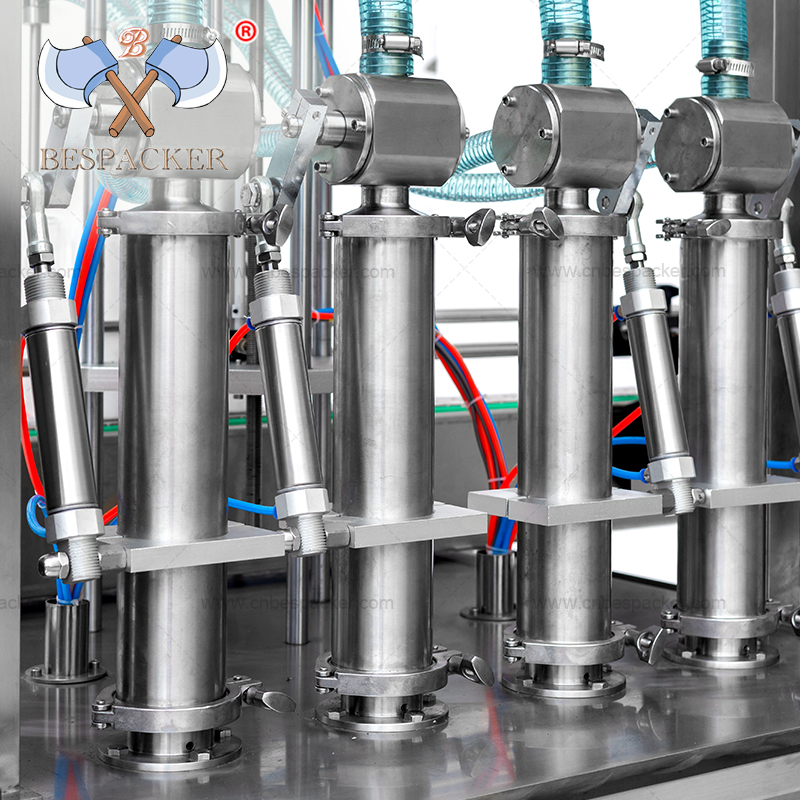

⊙Use of international advanced gas filling valve to ensure that the filling process without dripping, no coveted.
⊙Strong technical team and intelligent software support, can achieve the ideal filling operations.
All operations are completed on the touch-screen.
